5/8 X 3/8 Male Compression X Male Nptf Adapter
Part code: 01-001-014
Male Compression X Male Nptf AdapterLF-CW510L
Product Detail
Size5/8in X 3/8in
MaterialBrass
GradeLF-CW510L
Temperature-40°F to +250°F; -40°C to +121°C
PressureUp To 600 Psi; Up To 41 Bar
ConnectionsCompression-M; Mip
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3
Male Compression X Male Nptf Adapter, A Connector Combining A Male Compression End With A Male Nptf Threaded End. Precision‑Machined For Secure Joining, It Ensures Consistent Sealing Performance. Built With Durable Material For Long‑Term Reliability In Threaded Systems.
Our team responds within one business day.
Technical Specifications
Catalogue Code01-001-014
MaterialBrass
GradeLF-CW510L
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3
ConnectionsCompression-M; Mip
Material ConstructionBarstock

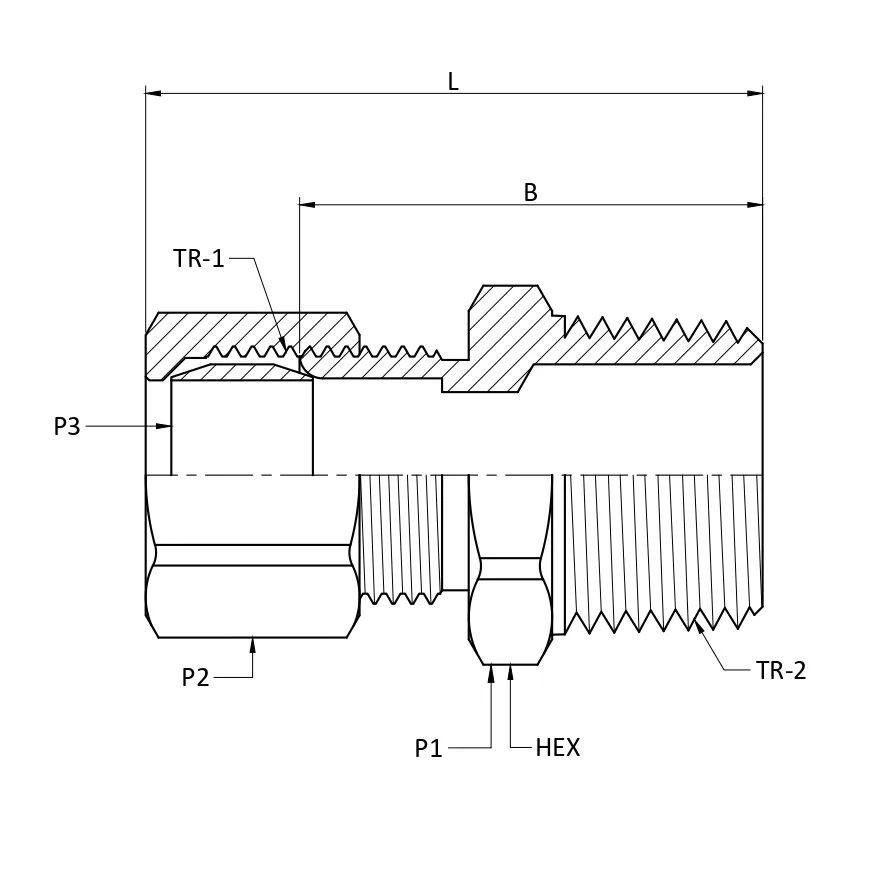

Dimensions & Drawing Request
L41.4 mm
B30.2 mm
HEX20.85 mm
TR-113/16-18 UNF
TR-23/8-18 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: 01-002-014;01-008-020;01-007-014
Applications: Plumbing, Refrigeration, Hydraulic, Pneumatic
Compliance & Notes
Certifications: ROHS Compliant, REACH Complaint, NSF Listed
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female Nptf End. Cut Tube Squarely. Slide Nut And Sleeve On Tube. Insert Tube Into Fitting Until It Bottoms. Hand-Tighten , Then Wrench-Tighten 1 To 1 1/2 Turn For Compression And 1 To 2 Turns For Nptf End. Test For Leaks.
