PRODUCT / TECHNICAL DATA
3/8 X 1/4 Male Nptf X Male Nptf Hex Nipple
Part code: 02-061-011
Male Nptf X Male Nptf Hex NippleC3604
Product Detail
Size3/8in X 1/4in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 1800 Psi; Up To 124 Bar
ConnectionsMip; Mip
Thread StandardANSI/ASME B1.20.3
Male Nptf X Male Nptf Hex Nipple, A Straight Connector With Male Nptf Threads On Both Ends. Precision‑Engineered For Secure Threaded Continuity, It Ensures Leak‑Resistant Performance. Built For Strength And Durability.
Our team responds within one business day.
Technical Specifications
Catalogue Code02-061-011
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.20.3
ConnectionsMip; Mip
Material ConstructionBarstock

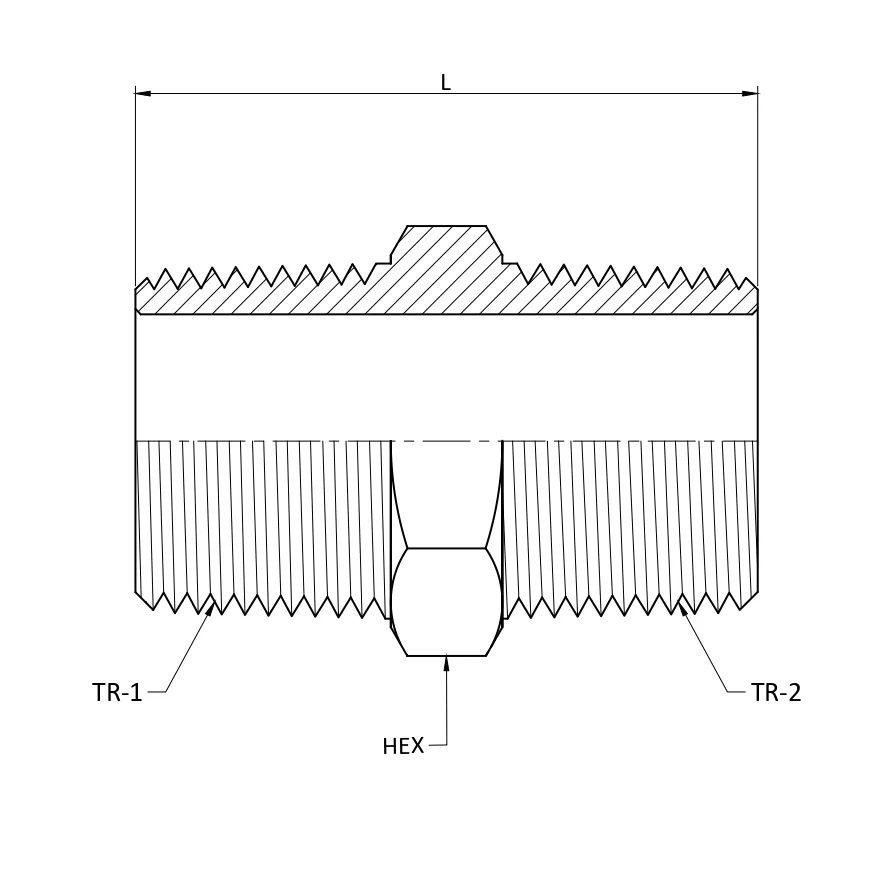

Dimensions & Drawing Request
L30.25 mm
HEX17.45 mm
TR-13/8-18 NPTF
TR-21/4-18 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Plumbing, Hardware & Sanitary
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female Nptf End. Hand-Tighten, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
