1/2 X 3/8 Male Flare X Male Nptf Adapter
Part code: 03-126-020
Male Flare X Male Nptf AdapterC3604
Product Detail
Size1/2in X 3/8in
MaterialBrass
GradeC3604
Temperature-40°F to +250°F; -40°C to +121°C
PressureUp To 2000 Psi; Up To 138 Bar
ConnectionsFlare-M; Mip
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3
Male Flare X Male Nptf Adapter, A Connector Combining Male Flare And Male Nptf Ends. Precision‑Crafted For Secure Joining. Built For Durability And Reliable Sealing.
Our team responds within one business day.
Technical Specifications
Catalogue Code03-126-020
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3
ConnectionsFlare-M; Mip
Material ConstructionBarstock
Dimensions & Drawing Request

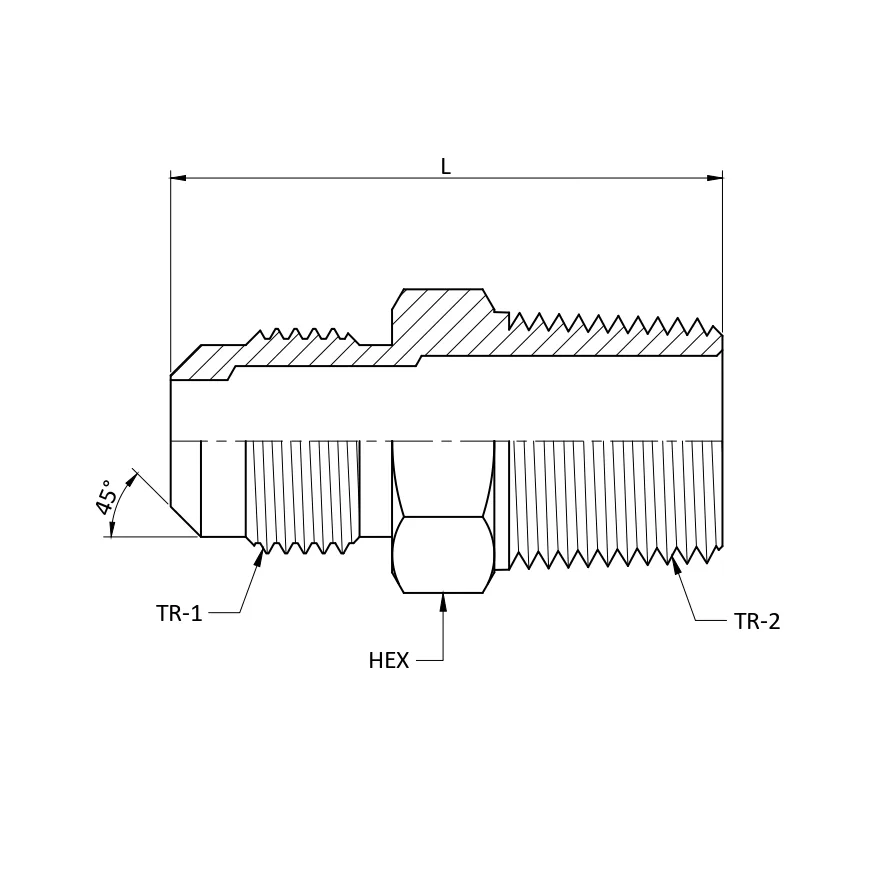

L41 mm
HEX19.3 mm
TR-13/4-16 UNF
TR-23/8-18 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Refrigeration, Air Conditioning, Lpg & Industrial Valves
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female Nptf End. Cut Tube Squarely. Flare To 45°. Insert Into Male Flare End. Hand-Tighten, Then Wrench-Tight 1/6 To 1/4 Turn For Flare End And 1 to 2 Turn For Nptf End. Test For Leaks.
