PRODUCT / TECHNICAL DATA
1/4 Female Swivel Unf Nut
Part code: 04-106-001
Female Swivel Unf NutCDA-360
Product Detail
Size1/4in
MaterialBrass
GradeCDA-360
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 300 Psi; Up To 21 Bar
ConnectionsUnf-F
Thread StandardANSI/ASME B1.1
Female Swivel Unf Nut, A Threaded Nut Designed For Unf Swivel Connections. Precision‑Cut Threads Ensure Secure Engagement. Manufactured For Strength And Consistent Sealing.
Our team responds within one business day.
Technical Specifications
Catalogue Code04-106-001
MaterialBrass
GradeCDA-360
Thread StandardANSI/ASME B1.1
ConnectionsUnf-F
Material ConstructionBarstock

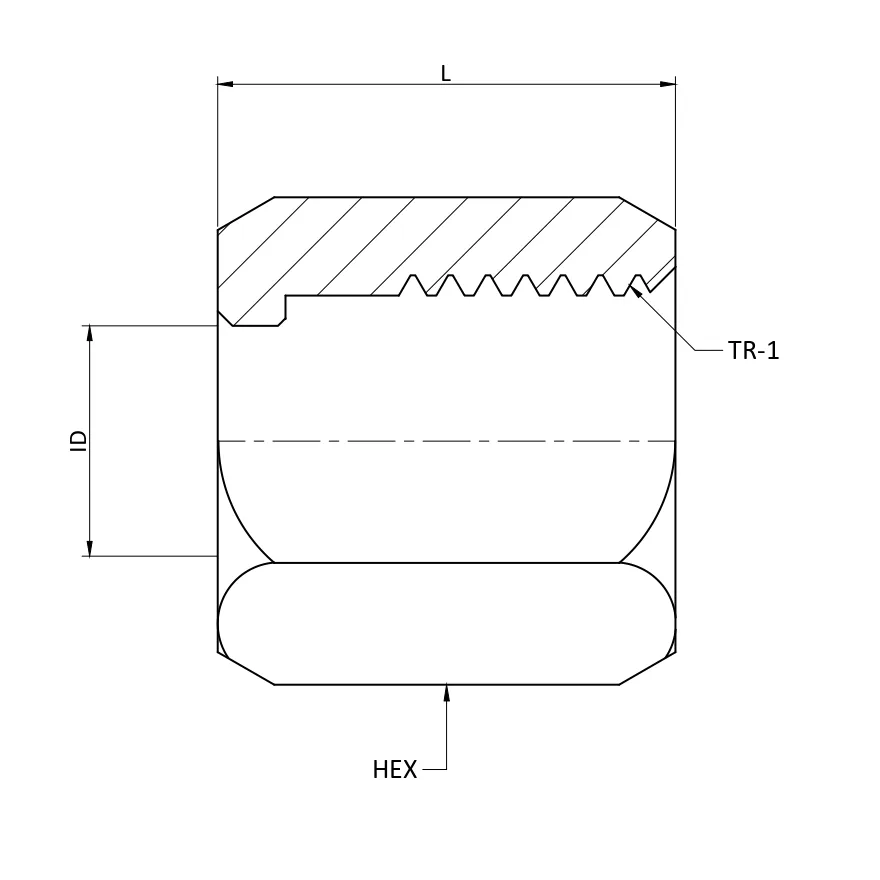

Dimensions & Drawing Request
L15.49 mm
ID7.8 mm
HEX14.29 mm
TR-17/16-20 UNF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Pneumatic, Plumbing, Agriculture Equipment
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Push Hose On The Barb End. Secure The Hose On The Barb End With A Clamp. Cut Tube Securely. Flare To 45°. Insert Into Swivel Nut. Hand-Tighten, Then 1/6 To 1/4 Turn. Test For Leaks.
