1/4 X 1/8 Hose Barb X Male Nptf Adapter
Part code: 04-170-001
Hose Barb X Male Nptf AdapterC3604
Product Detail
Size1/4in X 1/8in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 300 Psi; Up To 21 Bar
ConnectionsHose Barb; Mip
Thread StandardANSI/ASME B1.20.3
Hose Barb X Male Nptf Adapter, A Connector Combining Hose Barb And Male Nptf Ends. Precision‑Engineered For Secure Joining. Built For Durability And Reliable Sealing.
Our team responds within one business day.
Technical Specifications
Catalogue Code04-170-001
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.20.3
ConnectionsHose Barb; Mip
Material ConstructionBarstock

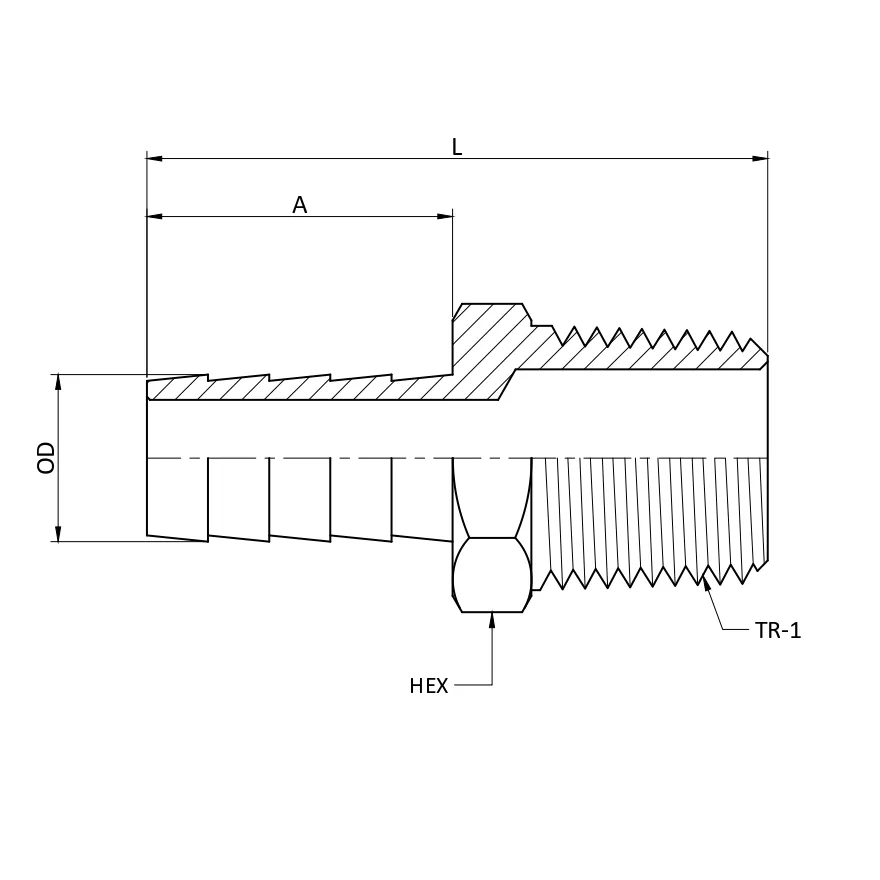

Dimensions & Drawing Request
L37.1 mm
A24.65 mm
OD7.37 mm
HEX11.11 mm
TR-11/8-27 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Pneumatic, Plumbing, Agriculture Equipment
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female Nptf End. Push Hose On The Barb End Till It Bottoms. Secure The Hose On The Barb End With A Clamp. Hand Tighten All Sides, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
