PRODUCT / TECHNICAL DATA
1/2 X 1/2 Push On Hose Barb X Male Nptf Adapter Body Only
Part code: 05-228-006
Push On Hose Barb X Male Nptf Adapter Body OnlyC3604
Product Detail
Size1/2in X 1/2in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 300 Psi; Up To 21 Bar
ConnectionsPohb; Mip
Thread StandardANSI/ASME B1.20.3
Push On Hose Barb X Male Nptf Adapter Body Only, The Body Component Without Washer. Provides A Stable Base For Push‑On Assemblies. Precision‑Machined For Accuracy And Durability.
Our team responds within one business day.
Technical Specifications
Catalogue Code05-228-006
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.20.3
ConnectionsPohb; Mip
Material ConstructionBarstock

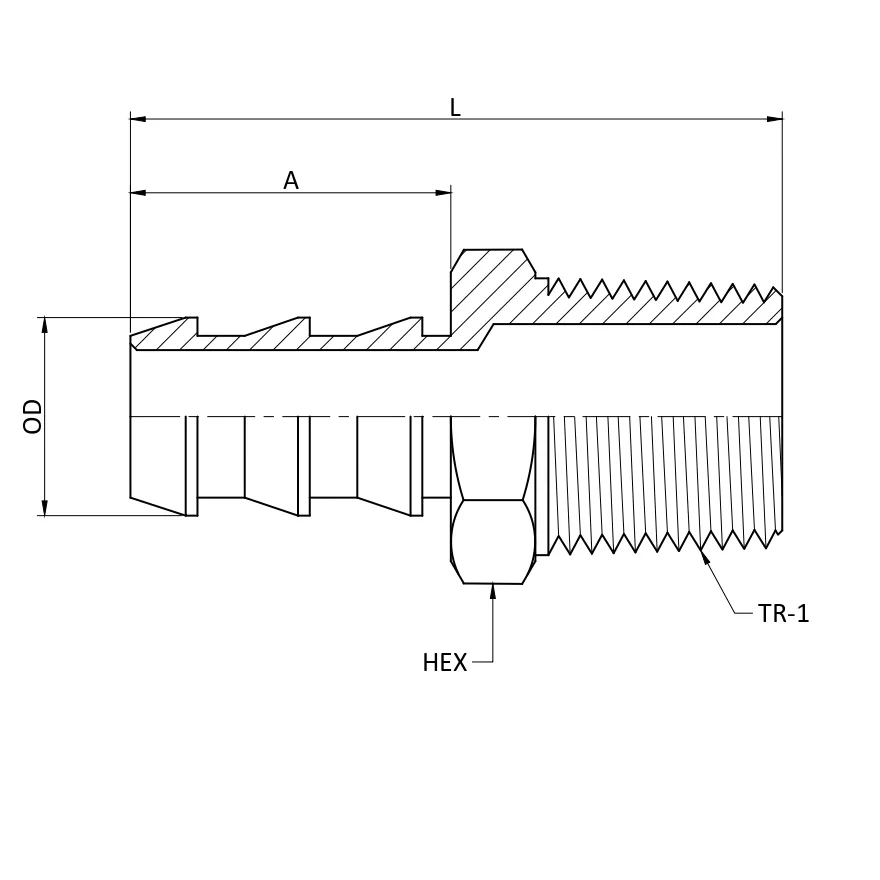

Dimensions & Drawing Request
L50.15 mm
A24.65 mm
OD15.24 mm
HEX22.22 mm
TR-11/2-14 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Pneumatic, Agriculture Equipment
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female Nptf End. Push Hose On The Barb End. Secure The Hose On The Barb End With A Clamp. Test For Leaks.
