PRODUCT / TECHNICAL DATA
5/8 X 3/4 Hose Barb X Female Garden Hose Swivel Adapter
Part code: 06-256-010
Hose Barb X Female Garden Hose Swivel AdapterC3604
Product Detail
Size5/8in X 3/4in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 150 Psi; Up To 10 Bar
ConnectionsHose Barb; Fgh
Thread Standard—
Hose Barb X Female Garden Hose Swivel Adapter, A Connector Combining Hose Barb And Female Garden Hose Swivel Ends. Precision‑Engineered For Secure Joining. Built For Durability And Reliable Sealing.
Our team responds within one business day.
Technical Specifications
Catalogue Code06-256-010
MaterialBrass
GradeC3604
Thread Standard—
ConnectionsHose Barb; Fgh
Material ConstructionBarstock

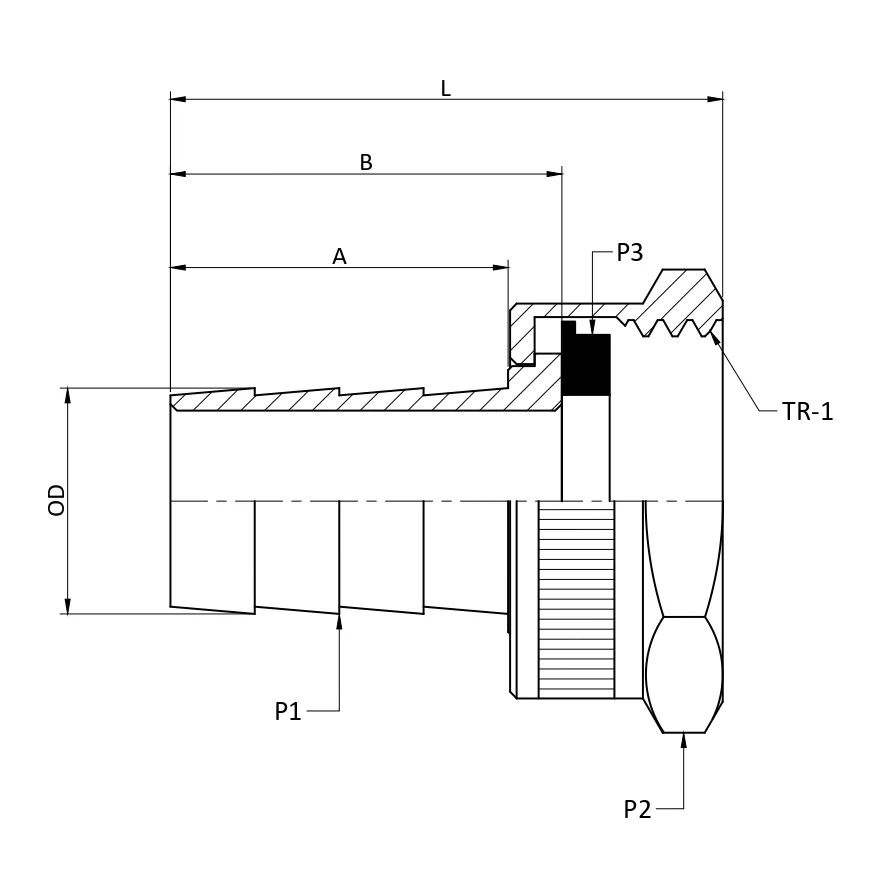

Dimensions & Drawing Request
L41.55 mm
B29.45 mm
A25.4 mm
OD17 mm
TR-13/4-11-1/2 GHT
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: 06-257-010;06-280-001;06-298-001
Applications: Agriculture Equipment, Plumbing, Hydraulic
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Push Hose On The Barb End. Secure The Hose On The Barb With A Clamp. Screw Male Ght End Into Female Ght With Washer. Hand-Tighten, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
