PRODUCT / TECHNICAL DATA
1/2 X 3/4 Hose Barb X Female Garden Hose Swivel Adapter Body Only
Part code: 06-257-001
Hose Barb X Female Garden Hose Swivel Adapter Body OnlyC3604
Product Detail
Size1/2in X 3/4in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 150 Psi; Up To 10 Bar
ConnectionsHose Barb; Fgh
Thread Standard—
Hose Barb X Female Garden Hose Swivel Adapter Body Only, The Body Component Without Nut And Washer. Provides A Stable Base For Garden Hose Swivel Assemblies. Precision‑Machined For Accuracy And Durability.
Our team responds within one business day.
Technical Specifications
Catalogue Code06-257-001
MaterialBrass
GradeC3604
Thread Standard—
ConnectionsHose Barb; Fgh
Material ConstructionBarstock

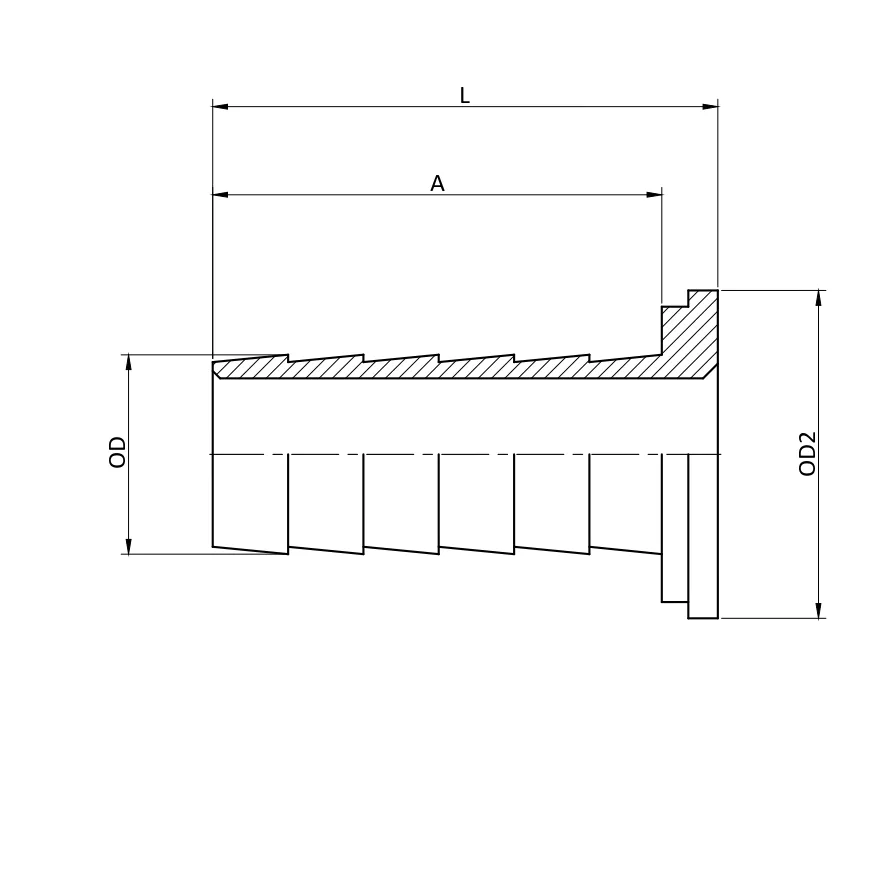

Dimensions & Drawing Request
L34.2 mm
A30.4 mm
OD113.5 mm
OD222.2 mm
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Agriculture Equipment, Plumbing, Hydraulic
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Push Hose On The Barb End. Secure The Hose On The Barb With A Clamp. Screw Male Ght End Into Female Ght With Washer. Hand-Tighten, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
