1-1/2 X 1/2 X 1/2 Male Bulkhead X Female Nptf X Female Nptf Bulkhead Adapter
Part code: 07-306-004
Male Bulkhead X Female Nptf X Female Nptf Bulkhead AdapterC3604
Product Detail
Size1-1/2in X 1/2in X 1/2in
MaterialBrass
GradeC3604
Temperature-20°C to 100°C; -4°F to 212°F
PressureUp To 1000 Psi; Up To 69 Bar
ConnectionsFip X Fip
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3; ANSI/ASME B1.20.1
Male Bulkhead X Female Nptf X Female Nptf Bulkhead Adapter, A Three‑Way Connector Combining Bulkhead And Female Nptf Ends. Precision‑Engineered For Secure Joining. Built For Durability And Reliable Sealing.
Our team responds within one business day.
Technical Specifications
Catalogue Code07-306-004
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.1; ANSI/ASME B1.20.3; ANSI/ASME B1.20.1
ConnectionsFip X Fip
Material ConstructionBarstock

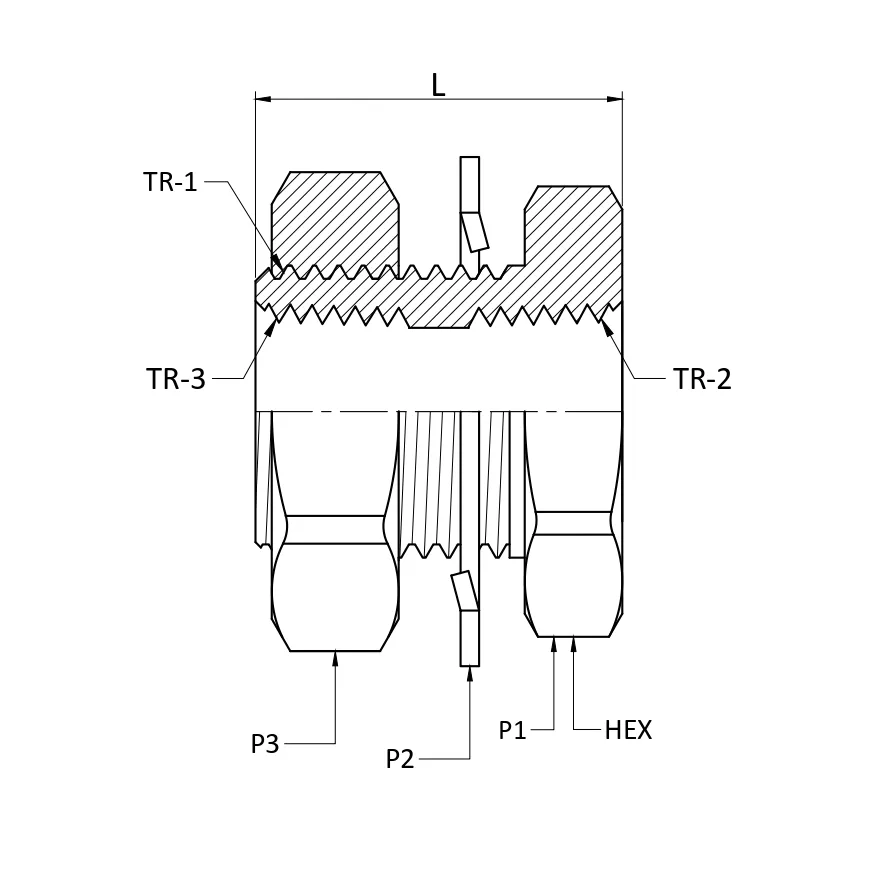

Dimensions & Drawing Request
L38 mm
HEX31.7 mm
TR-11-1/8-14 UNF
TR-21/2-14 NPTF
TR-31/2-14 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: 07-307-004;07-305-004;24-407-004
Applications: Plumbing, Hardware & Sanitary, Pneumatic
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End. Screw Male Nptf End Into Female End. Insert Shank Through Panel. Thread Lock Nut Behind Panel. Use Washer Wherever Required. Hand-Tighten, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
