PRODUCT / TECHNICAL DATA
1/2 Push In Sleeve
Part code: 08-318-001
Push In SleeveC3604
Product Detail
Size1/2in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 150 Psi; Up To 10 Bar
ConnectionsTube
Thread Standard—
Push In Sleeve, A Cylindrical Insert Designed For Push‑In Fittings. Provides Secure Grip And Sealing Between Nut And Body. Precision‑Machined For Reliable Performance.
Our team responds within one business day.
Technical Specifications
Catalogue Code08-318-001
MaterialBrass
GradeC3604
Thread Standard—
ConnectionsTube
Material ConstructionBarstock

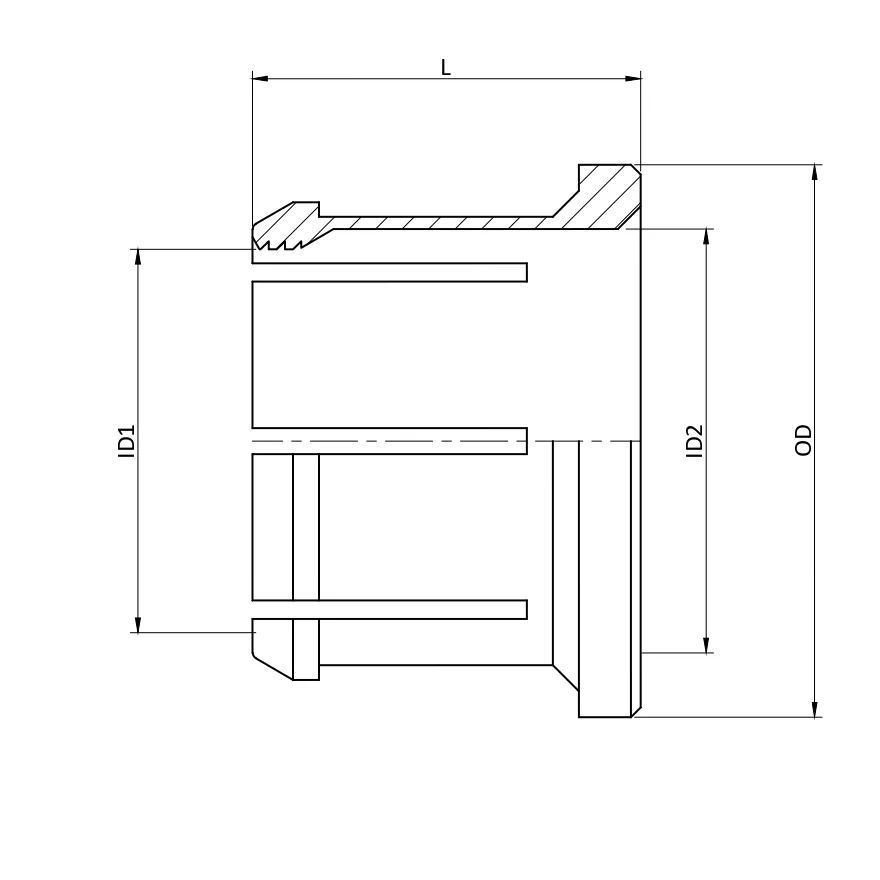

Dimensions & Drawing Request
L11.95 mm
ID111.8 mm
ID213.05 mm
OD17 mm
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Plumbing, Hardware & Sanitary
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Put Sleeve In the Push Side. Push Tube Into Push-In End. Test For Leaks.
