PRODUCT / TECHNICAL DATA
1/2 X 1/4 Push In X Male Nptf Adapter Body Only
Part code: 08-320-001
Push In X Male Nptf Adapter Body OnlyC3604
Product Detail
Size1/2in X 1/4in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 150 Psi; Up To 10 Bar
ConnectionsPush In; Mip
Thread StandardANSI/ASME B1.20.3
Push In X Male Nptf Adapter Body Only, The Body Component Without O-Ring And Sleeve. Provides A Stable Base For Push‑In Assemblies. Precision‑Machined For Accuracy And Durability.
Our team responds within one business day.
Technical Specifications
Catalogue Code08-320-001
MaterialBrass
GradeC3604
Thread StandardANSI/ASME B1.20.3
ConnectionsPush In; Mip
Material ConstructionBarstock

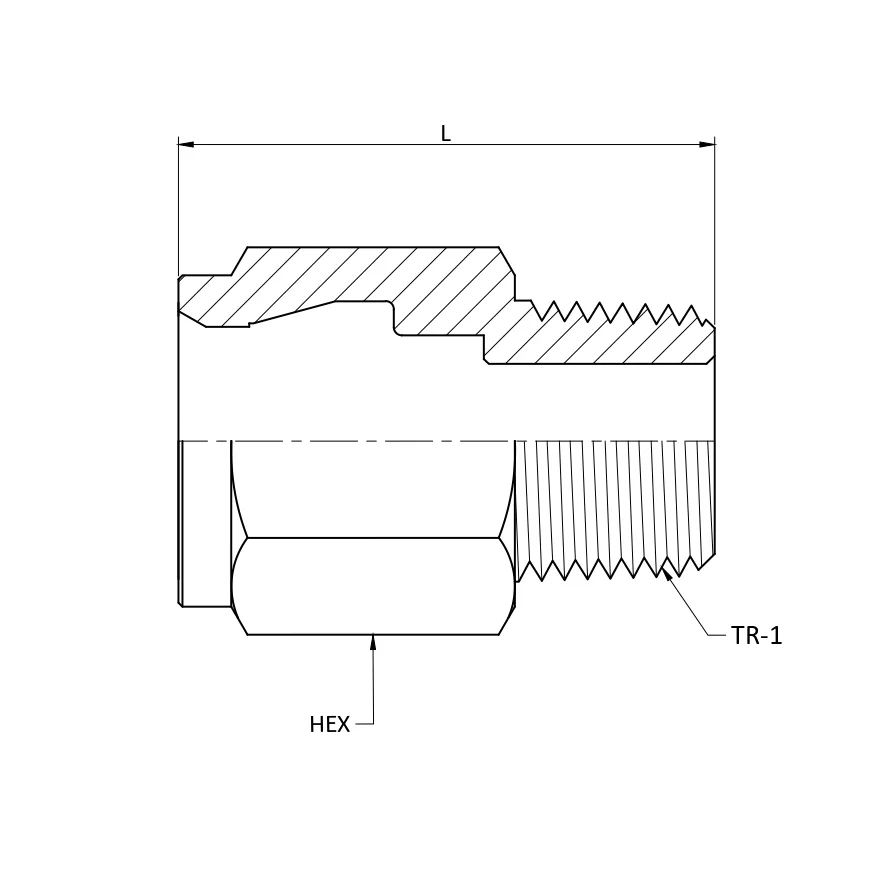

Dimensions & Drawing Request
L34.55 mm
HEX20.65 mm
TR-11/4-18 NPTF
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Plumbing, Hardware & Sanitary
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Apply Sealant To Male Nptf End, Screw Male Nptf End Into Female Nptf End. Push Tube Into Push-In End. Hand Tighten, Then Wrench Tight 1 To 2 Turn. Test For Leaks.
