3/4 Push On Dot Sleeve
Part code: 09-362-001
Push On Dot SleeveC3604
Product Detail
Size3/4in
MaterialBrass
GradeC3604
Temperature-40°F to +200°F; -40°C to +93°C
PressureUp To 150 Psi; Up To 10 Bar
ConnectionsDot
Thread Standard—
Push On Dot Sleeve, A Cylindrical Insert Designed For Dot Push‑On Fittings. Provides Secure Grip And Sealing. Precision‑Machined For Reliable Performance.
Our team responds within one business day.
Technical Specifications
Catalogue Code09-362-001
MaterialBrass
GradeC3604
Thread Standard—
ConnectionsDot
Material ConstructionBarstock

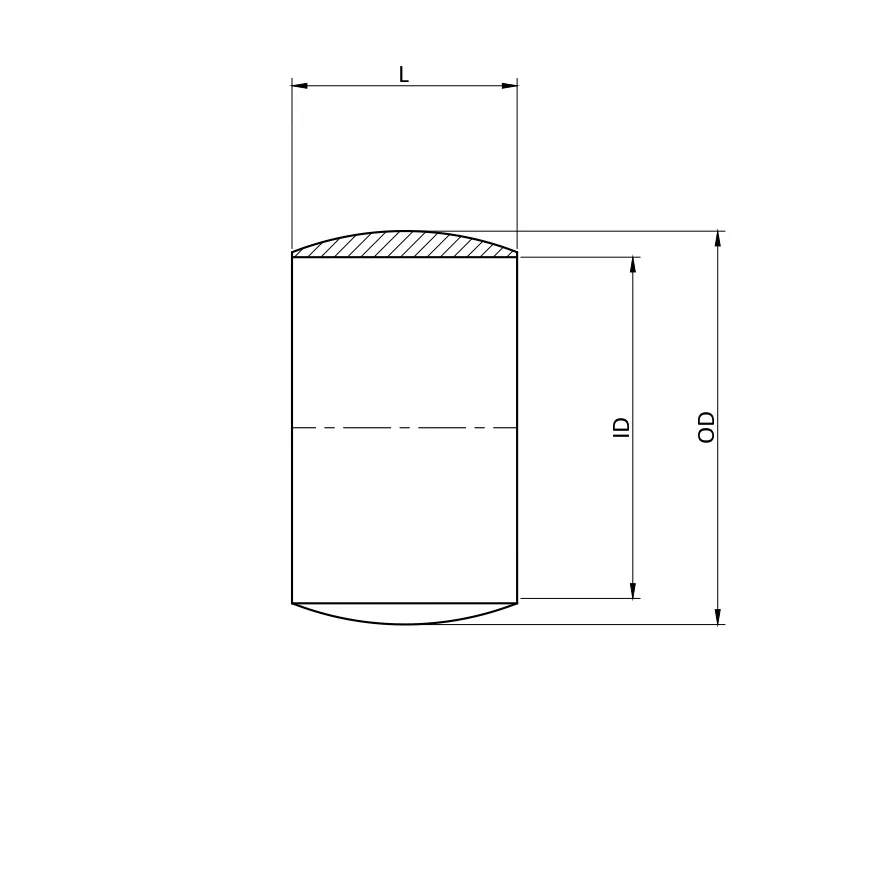

Dimensions & Drawing Request
L12.7 mm
OD22.2 mm
ID19.25 mm
Technical drawing
A dimensioned drawing is not available online for this part. Request it with your quote inquiry.
Request this drawingAssembly Components & Applications
Assemblies: —
Applications: Automotive, Pneumatic
Compliance & Notes
Certifications: ROHS Complaint, REACH Compliant
Additional notes: Disclaimer: Installation Instructions Are Provided As A General Guide Only. Please Use Professional Judgment During Installation. Insert The Sleeve In The Push To Connect DOT Fitti Use Or-ing If It Is Not Pre Installed.
